pallet stacking rack

FOB Reference Price:Get Latest Price
US $50-500 / Meters | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Hegerls
Model Number:
HGLS
Type:
Multi-Level
Material:
Stainless Steel
Feature:
Corrosion Protection
Use:
Warehouse Rack
Certification:
ISO
Depth:
1.5~3.0mm
Weight Capacity:
500-2500kg/shelf
Width:
1500-3600mm
Height:
1000-12000mm
any colour:
Stock rack
Supply Ability
Supply Ability:
100,000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard packing
Port
Tianjin
Lead Time :
within 10 days

Specifications

Storage Rack system
1.High grade Q235B Steel
2.Capacity:500kg-2500kg per shelf
3.Assembled freely and adju

pallet stacking rack

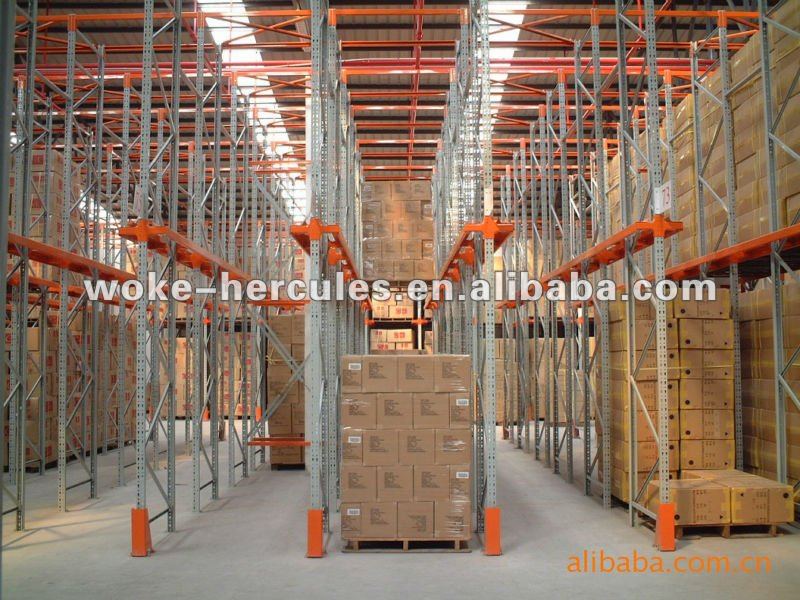

The heavy type of pallet rack is the most cost effective storage system with the lowest equipment and capital costs. It provides direct access to all pallets for 100% accessibility and good stock rotation.

1. Features:

1)Beam levers are adjustable in 75mm pitch interval.

2)Different sizes, various specifications and colors are available according to  customers’ different needs.

3)Maximizes space use ratio in any warehouse configuration while retaining optimum product accessibility.
4)Strength and rigidity prevents compression damage to goods.
5)Bottom level of pallets can be stored on the floor, lowering structure costs.

  2. Material:

 High grade Q235B Steel

  3. Finish:

 High-quality Powder Coating Finishing.

  4. Load Capacity & Dimension:

Loading capacity: 500-2500 kgs UDL/beam level.
Height: 1000-11000mm
Depth: 400-1500mm
Length: 1500-3600mm
Specail sizes also avaiable to specific storage needs.

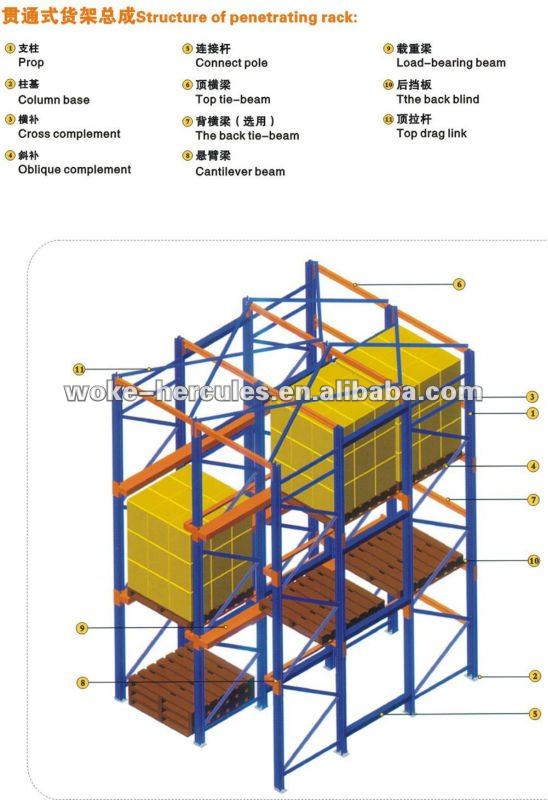

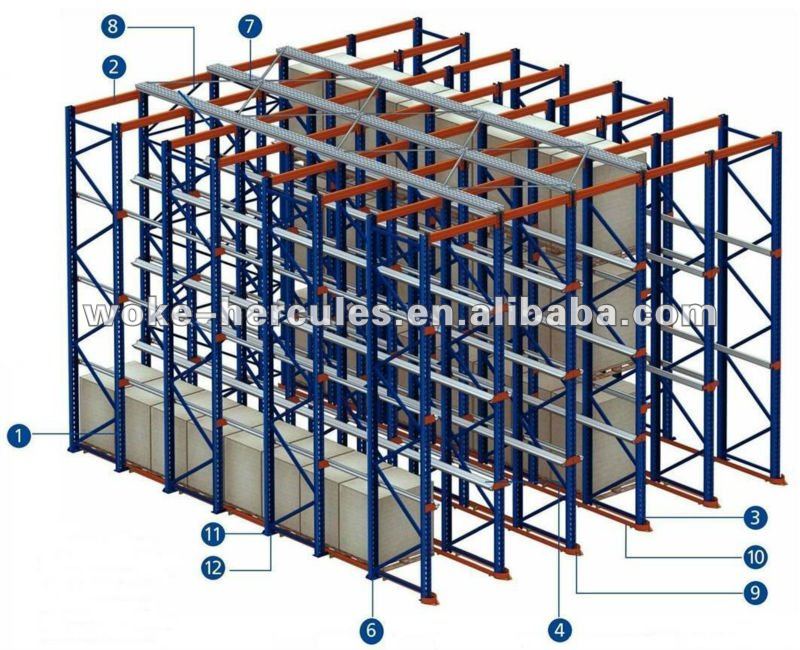

  5. Main Parts Specs:

1) Uprights:86*66*1.5, 86*66*2.0,86*66*2.2, 100*80*2.0, 100*80*2.5, 120*80*2.0,120*80*2.5,140*80*2.0,140*80*2.5mm, etc.
2) Box beams: 88*40*1.3, 88*40*1.5, 108*40*1.3, 108*40*1.5, 125*45*1.3,125*45*1.5, 125*45*2.0, 145*50*1.5, 145*50*1.8, 165*50*1.5mm, etc.,
3) Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.

  6. CE certified.

Smaco® storage metal rack, CE certified, is designed and manufacturered to European Racking Code FEM 10.2.02, the Australian Standard - Steel Storage Racking AS4084-1993, and American racking standards.

  7. Quick Delivery.

 Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.

 Other useful information:

 Accessories: we provide necessary component, such as horizontal , diagonal beam and screw.

 Packing: bubble pack, or according to customer's requirements

 Payment: T/T, L/C at sight, western union

 Warranty: 3 years guarantee from the delivery date

 Lead time: within 15   days

 MOQ: 10 Sets

 Production capacity: 6000 tons/month
